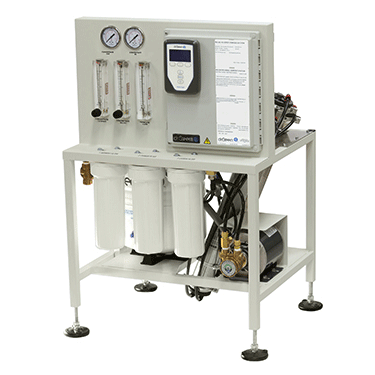

DriSteem RO-200 Series

Search Results for

    Select a diagram to view its parts

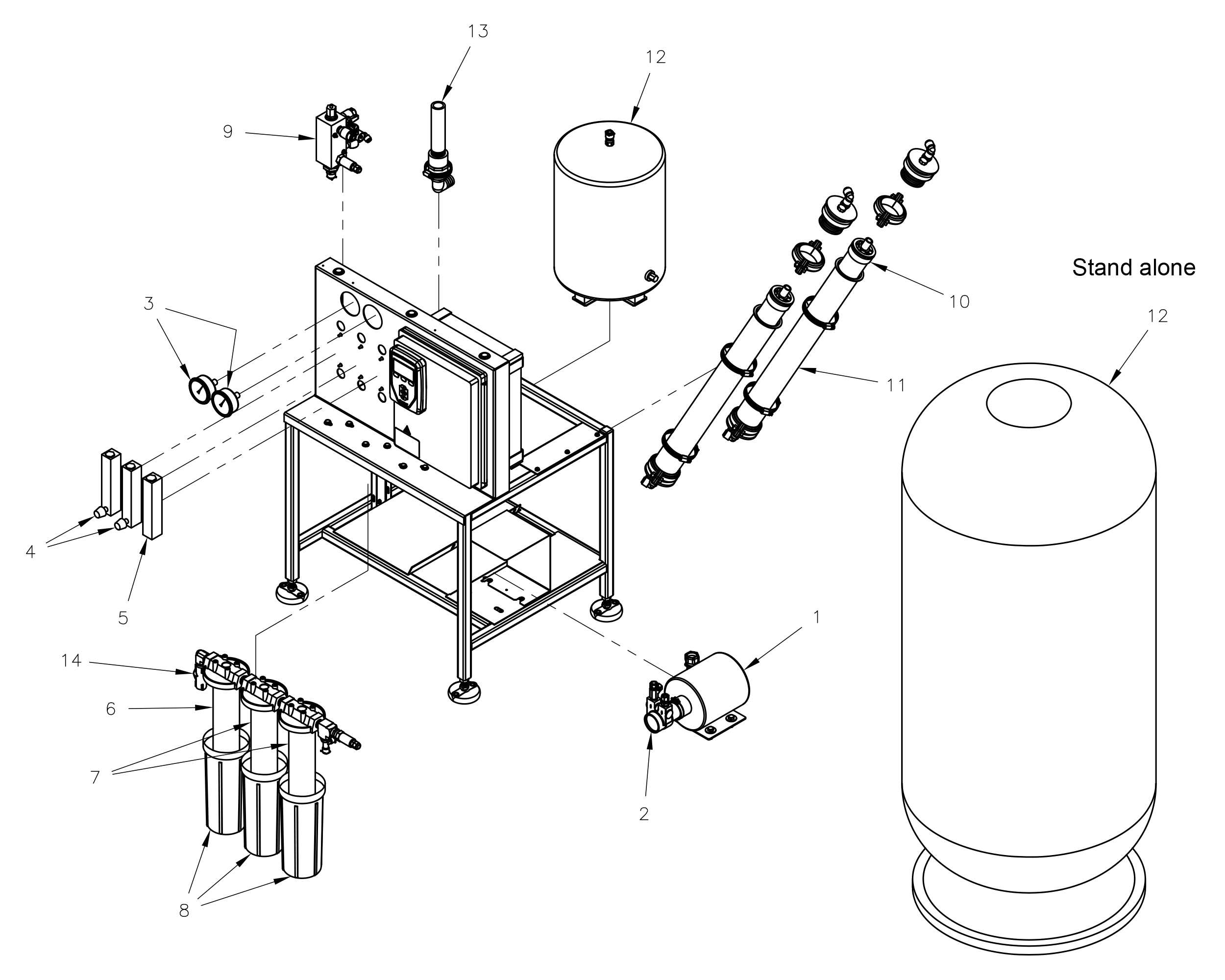

    RO System Parts

    Diagram

    RO System Parts
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    12
    12
    14

    RO System Parts

    1. 1
      Pump Motor
      Pump Motor
      SKU: 400292001
      $861.08
    2. 2
      Pump Rotary Vane
      Pump Rotary Vane
      SKU: 400294001
      $530.60
    3. 2
      Pump Rotary Vane
      Pump Rotary Vane
      SKU: 400294002
      $530.60
    4. 3
      Gauge
      Gauge
      SKU: 260004400
      $157.18
    5. 4
      Meter
      Meter
      SKU: 501907402
      $254.80
    6. 5
      Meter
      Meter
      SKU: 501907302
      $182.00
    7. 6
      Sediment Filter
      Sediment Filter
      SKU: 550030002
      $27.79
    8. 7
      Carbon Filter
      Carbon Filter
      SKU: 550030003
      $27.79
    9. 8
      Housing
      Housing
      SKU: 550030001
      $49.03
    10. 9
      Manifold Assembly
      Manifold Assembly
      SKU: 187714002
      $2,387.95
    11. 10
      Membrane
      Membrane
      SKU: 550035025
      $427.00
    12. 12
      Water Tank
      Water Tank
      SKU: 550029004
      $254.80
    13. 14
      Solenoid Valve
      Solenoid Valve
      SKU: 505107050
      $414.40

    RO System Parts Not In Diagram

    1. Not Shown
      Water Tank
      Water Tank
      SKU: 550029200
      $2,976.29
    Control Cabinet Parts

    Diagram

    Control Cabinet Parts
    2
    3
    4
    5
    5
    6
    7
    8
    9
    10
    12
    13
    14
    15
    16
    17

    Control Cabinet Parts

    1. 2
      Module
      Module
      SKU: 408642
      $3,182.20
    2. 3
      Resistor
      Resistor
      SKU: 408995008
      $2.80
    3. 4
      Bushing
      Bushing
      SKU: 407129
      $1.12
    4. 5
      Medium Lug
      Medium Lug
      SKU: 409250027
      $11.76
    5. 6
      Terminal Block
      Terminal Block
      SKU: 408300002
      $32.34
    6. 7
      Transformer
      Transformer
      SKU: 408965001
      $144.20
    7. 8
      Din Rail End Cap
      Din Rail End Cap
      SKU: 408252005
      $4.69
    8. 9
      Din Rail Center
      Din Rail Center
      SKU: 408252001
      $7.00
    9. 10
      Din Rail End
      Din Rail End
      SKU: 408252006
      $7.00
    10. 12
      Display Keypad
      Display Keypad
      SKU: 408495002
      $1,236.20
    11. 13
      Rear Display Case
      Rear Display Case
      SKU: 408495003
      $51.59
    12. 14
      Wire Data Cable
      Wire Data Cable
      SKU: 408490014
      $26.60
    13. 15
      Mount
      Mount
      SKU: 408490021
      $15.33
    14. 16
      Plug
      Plug
      SKU: 406246003
      $5.11
    15. 17
      Plug
      Plug
      SKU: 406246004
      $5.38
