DriSteem CRUV-2 - 120V 1 Phase (Tap/Softened Water)
Search Results for
Select a diagram to view its parts

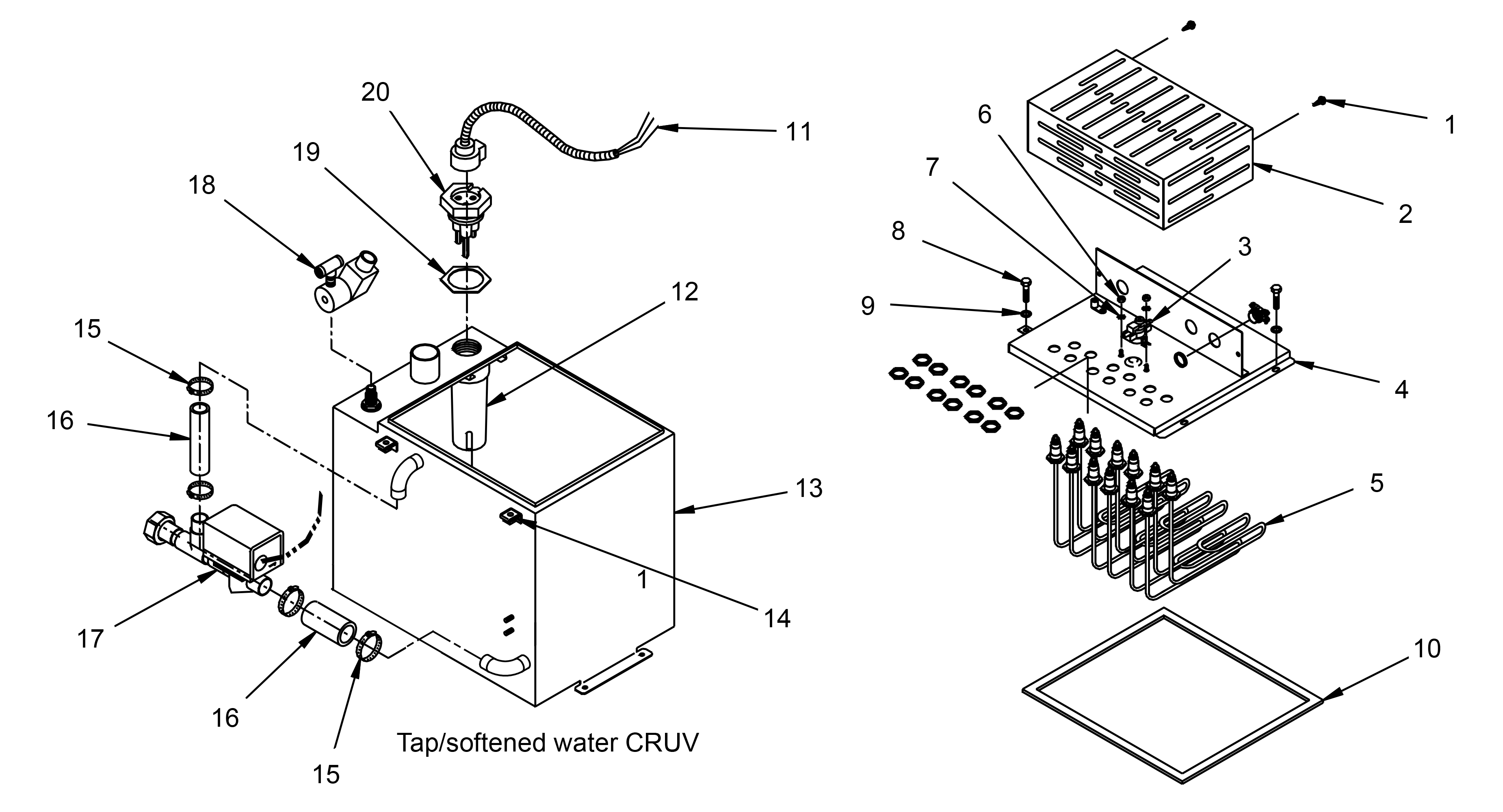

Cabinet
Diagram
1
3
6
7
8
9
11
12
14
15
15
16
16
17
18
19
Cabinet

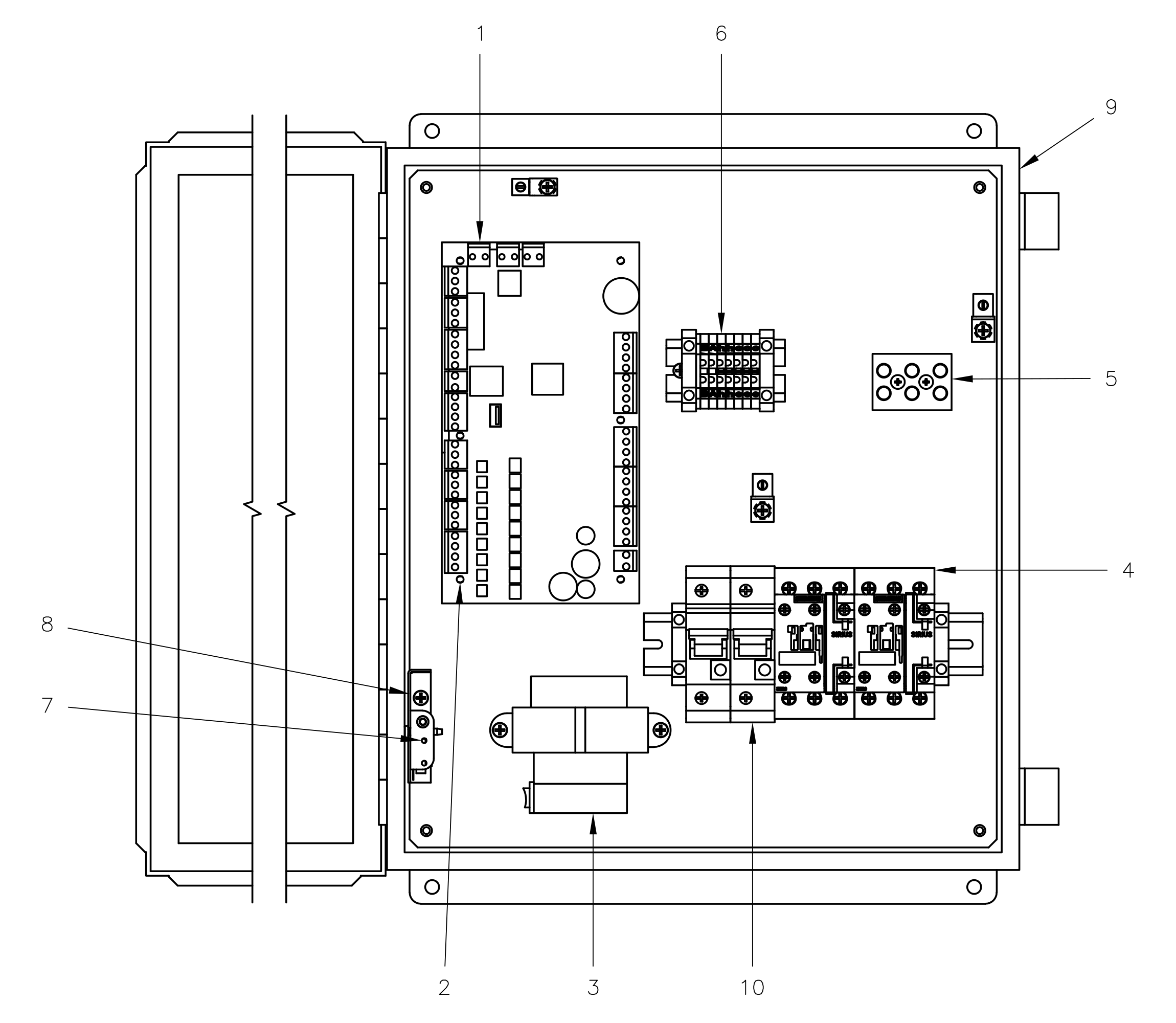

Subpanel with Vapor-logic
Diagram
1
2
5
6
7
8
9
Subpanel with Vapor-logic

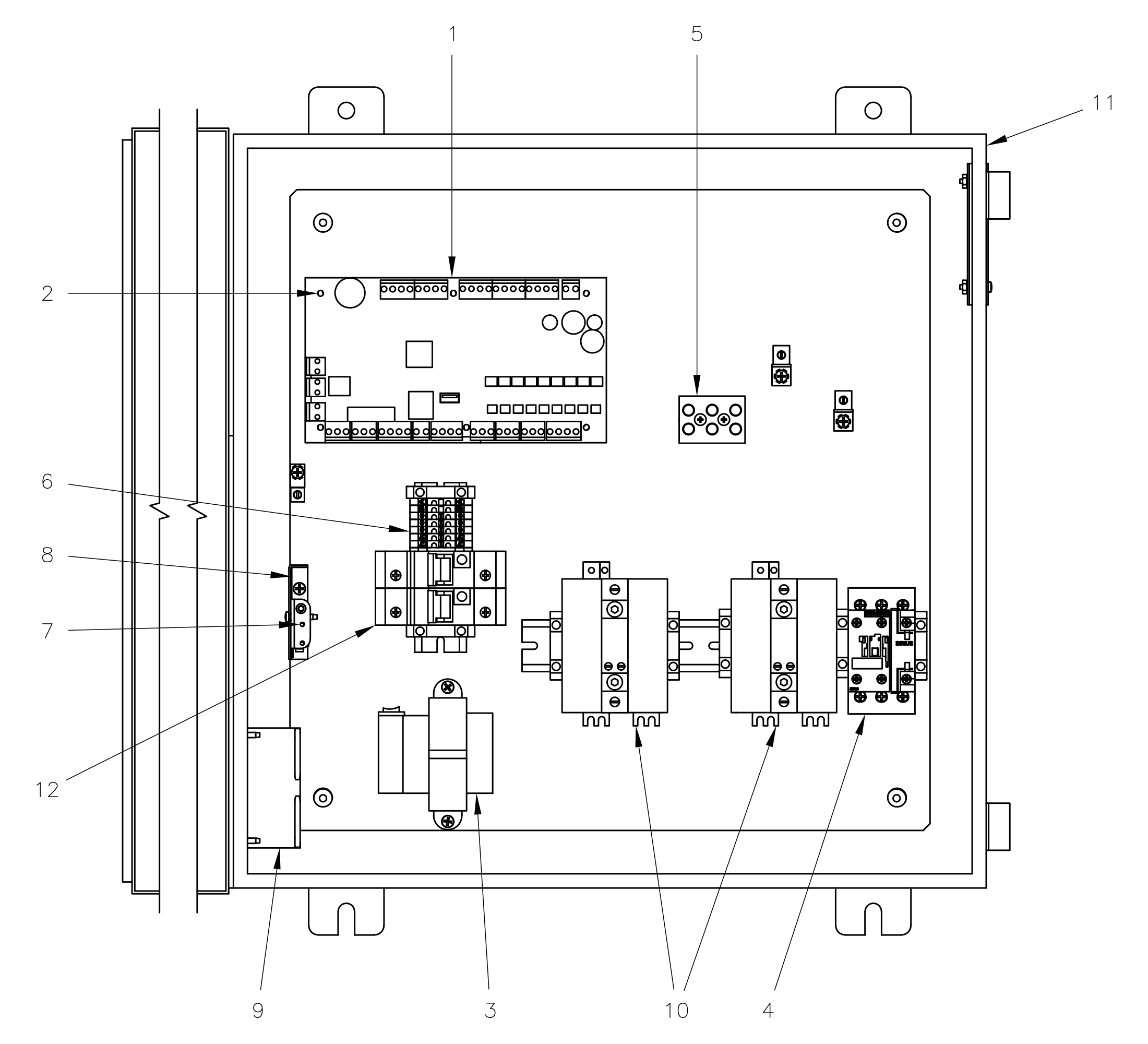

Subpanel with Vapor-logic and SSR
Diagram
1
2
5
6
7
8
9
10
11
Subpanel with Vapor-logic and SSR

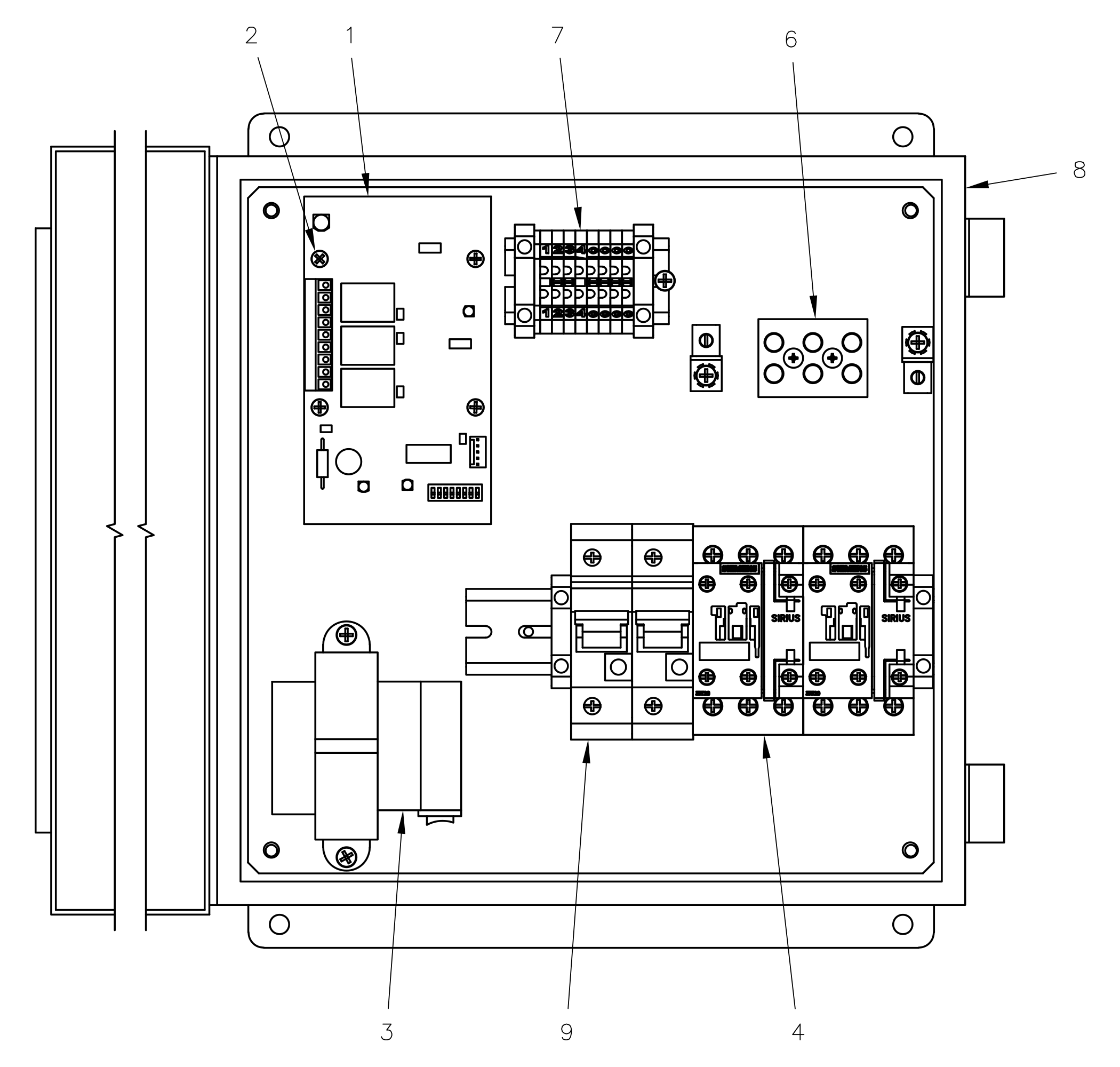

Subpanel with LW Series Controller
Diagram
1
2
6
7
8
Subpanel with LW Series Controller

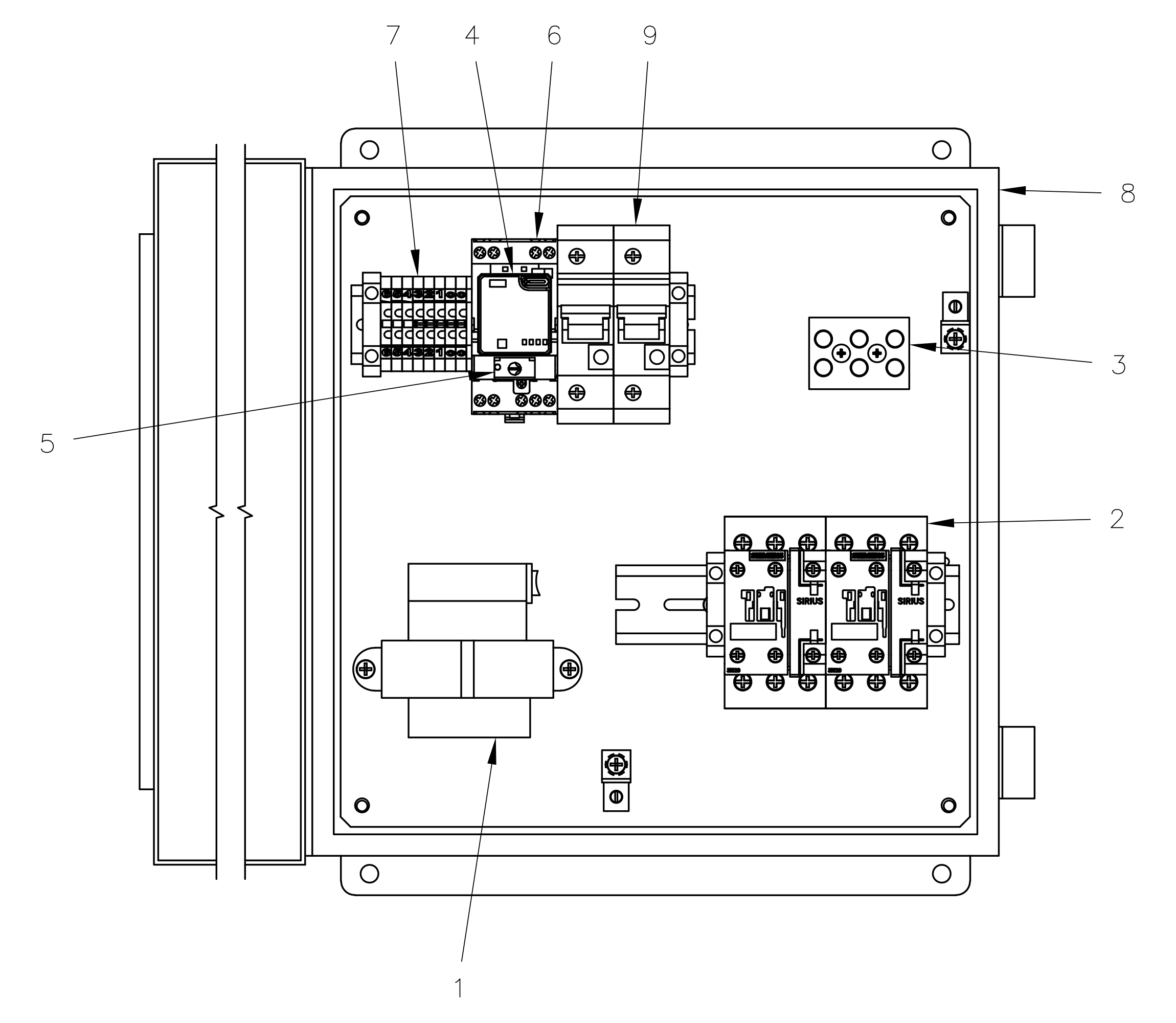

Subpanel with Time and Delay
Diagram
3
4
5
6
7
8
Subpanel with Time and Delay
Documentation
Repair Help
View available resources
Information

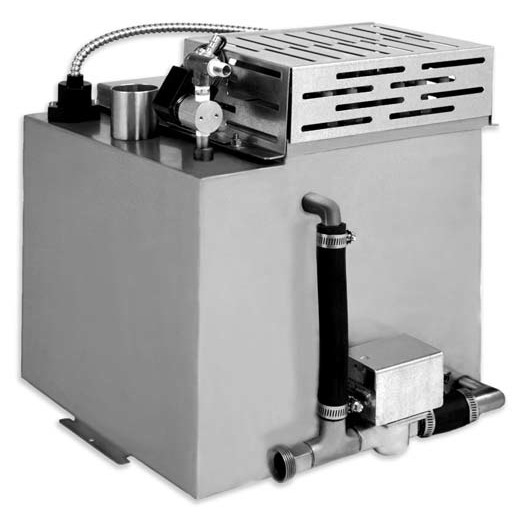

The compact CRUV humidifier is designed to integrate inside an existing enclosure, such as a packaged air conditioning unit or added to an existing system, such as an environmental chamber. CRUV is self-contained, compatible with all water types, and the clear choice for adding a humidification system while meeting minimum space requirements. The CRUV humidifiers provide reliable control to ±3% RH. The standard LW Series electronic control system controls water levels and drain and flush cycles. The Vapor-logic® microprocessor controller is available for applications requiring advanced control.
Maintenance
The best way to determine how often your humidifier needs maintenance is to remove the tank cover and inspect it for mineral deposits after three months of duty. Hours of operation and duty cycle will determine your maintenance schedule, as will water quality. Please refer to the installation, operation, and owner's manual attached above for more information.
